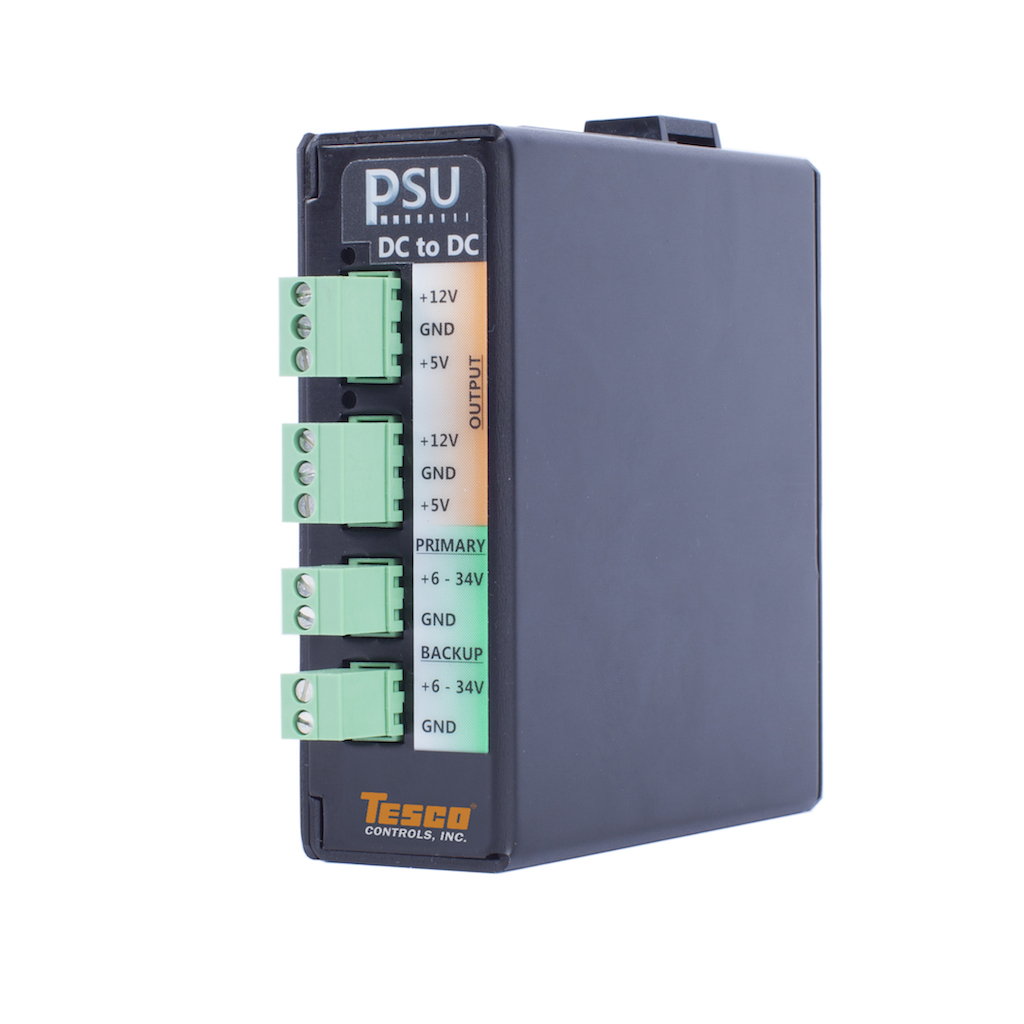

TESCO® L3000e® PSU Power Supply

‍

The TESCO PSU multi-port DC to DC power supply unit provides the required +12VDC and +5VDC for the L3000e® and other peripheral equipment.

‍

It has been designed with an integrated battery backup system which engages, should the +24V primary power source fall 1.2V below the battery backup voltage input; a bumpless transfer to the battery backup voltage is initiated. If the primary voltage input rises to 1.2V greater than the battery backup voltage, a bumpless transfer back to the primary power input is performed.

‍

Features

Integral battery backup with bumpless transfer
Pull-apart terminal blocks
Spare fuse

‍

L3000 PSU Power Supply Unit
2 Inputs	Primary and backup
2 Inputs	Primary and backup
2 Outputs	Each output provides the required +12VDC and +5VDC
Input Voltage	6VDC to 34VDC
Primary>Backup	1.2V (to prevent L3000e from running on the backup battery)
Efficiency	>95%
Operating Temp	150°F
+12V Total Amperage	4A
+5V Total Amperage	5A
Mount	DIN Rail
Dimensions	H 4.45” x D 4.25” x W 1.5”
